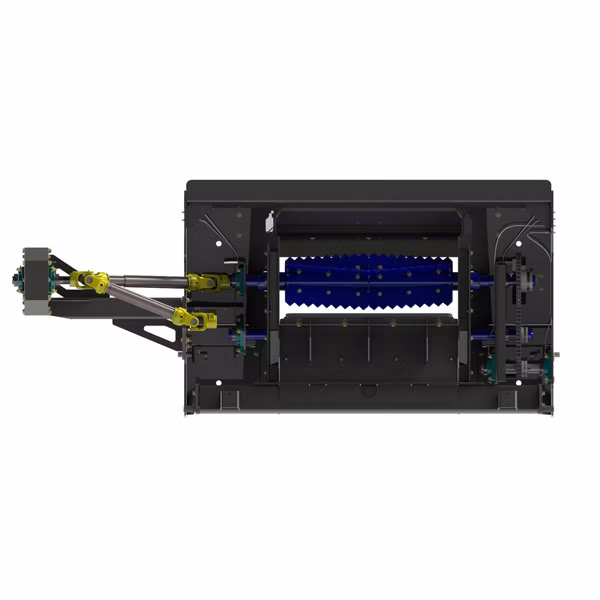

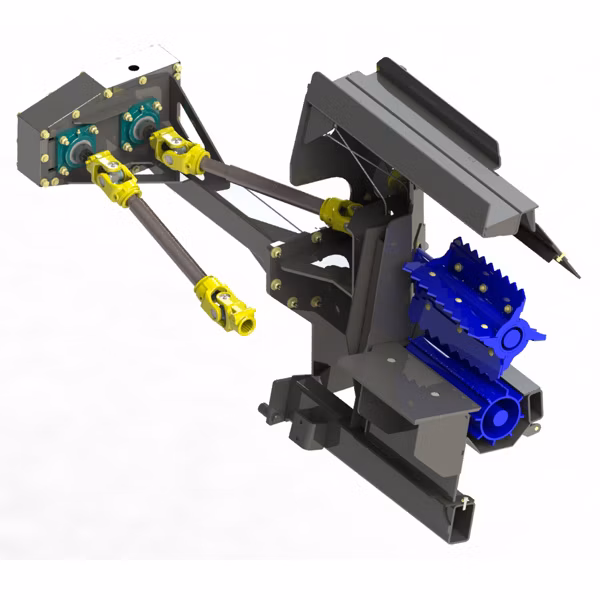

Doppelrollenadapter passend für New Holland®

The KFR920 is designed to enhance harvesting efficiency and performance. This adapter features an advanced crop flow system with an additional bottom intake roller, complementing the standard top roller. Specially engineered for higher horsepower harvesters and larger corn heads, the KFR920 delivers better cleanout, constant feeding, and increased harvesting speeds averaging 6-7 MPH.

The KFR920 header adapter is used for harvesting just the ears of corn while using a crop row header to make earlage. Earlage is harvested later than silage, giving the producer a longer working window and provides a product that reduces the amount of roughage that needs to be fed as compared to a corn-based ration.

The KFR920 will mount on the front of a New Holland® FR Series self-propelled forage harvester to facilitate the connection between the harvester and a crop row header. It is ideally suited for 10 to 12 row corn heads and fits both narrow and wide row heads. The design and feeding angle promote faster product feeding when harvesting. Forage harvester will need dual drive hook ups to power various corn heads, including John Deere®, New Holland®, Case IH®, Drago™, and more. Conversation brackets for Case IH® or New Holland® Corn Heads K98CJD, and K4000CH. Conversion bracket for Geringhoff® KGCKIT.

Installation of the KFR920 Header Adapter is the same as hooking up any other implement, you can leave the adapter on the harvester or corn head when not in use. When leaving the adapter on the corn head, it's simply picking up the adapter/corn head and hooking up the PTOs.

Measuring Your PTO Connection:

To ensure proper compatibility, measure the Hex shaft on your corn head by removing the PTO where it connects to the frame. Common sizes include:

• 1-1/8”
• 1-1/4”
• 1-1/2”

These adapters are very robust, many customers have 10 plus years of use from theirs. Replacement of the adapter typically occurs when a customer trades brands or upgrades their harvester.

Kooima Ag is the leader in header adapter manufacturing, continuous testing and implementation of customer requests help us offer one of the best products available.

• Patent # 10,743,467 and patent # 8,376,126

Product Overview
Kooima Ag’s earlage adapters allow operators to run a variety of corn head brands with forage harvesters, giving you flexibility and compatibility without compromising performance. Whether you're outfitting your harvester for a new header or adapting an existing setup, our conversion kits make the switch easy and efficient.

Compatible Header Brands & Required Conversion Kits:

• New Holland® & Case IH® 3000 Series Headers:
  Use Conversion Kit: K98CJD
• New Holland® & Case IH® 2608, 2612, and 4000 Series Headers
  (For throats with angle supports in the top corners)
  Use Conversion Kit: K4000CH
• Lexion® Headers:
  Use Conversion Kit: KLEXKIT
• Harvestec® & Cressoni® Headers:
  Please purchase S Series John Deere® mounting brackets separately to complete the installation
• Geringhoff® Headers:
  Use Conversion Kit: KGCKIT
