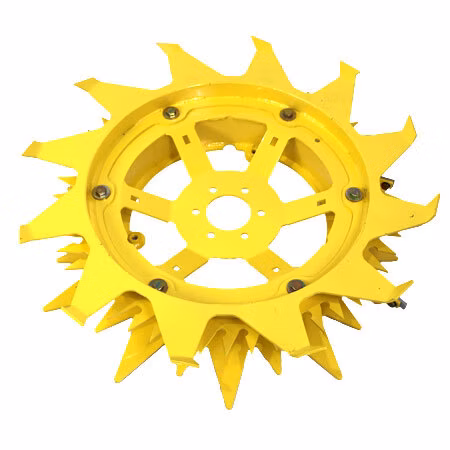

CW Outer Gathering Drum

The gathering drum is a vital component for effective forage harvesting. It holds the forage upright, allowing the knife rotor to cut it cleanly near the ground. Additionally, the drum helps guide the forage to the back of the header, where the feed drums direct it toward the center of the forage header.

This gathering drum is designed to spin counterclockwise and is compatible with headers 345+, 360+, 375+, 390+, 690, 692, 696, and 698.

Maintenance Tips:
Replace the gathering drum when:

• Segments are sharp or bent.
• The drum is out of balance.

Replacement Parts:

• Top Row Scraper: KK92910 (1 required)
• Second Row Scraper: KK93241 (1 required)
• Bottom Bolt-On Segments: KK123501SG or Weld-On Segments: KK90654

For the outside drum scraper, use KK12306.
