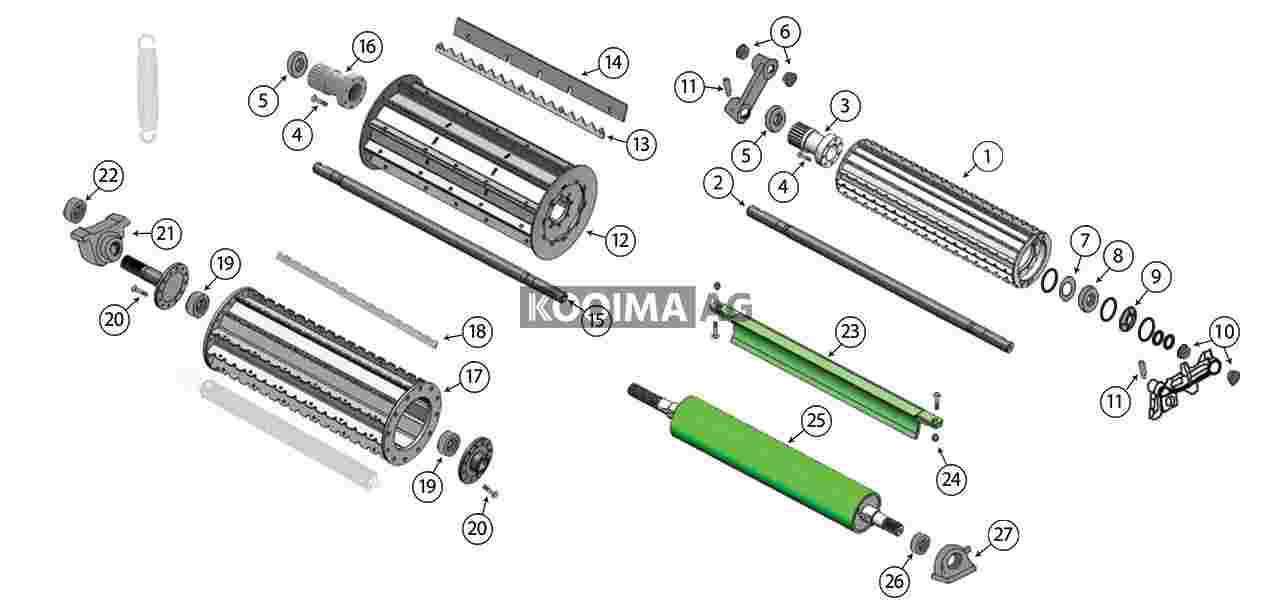

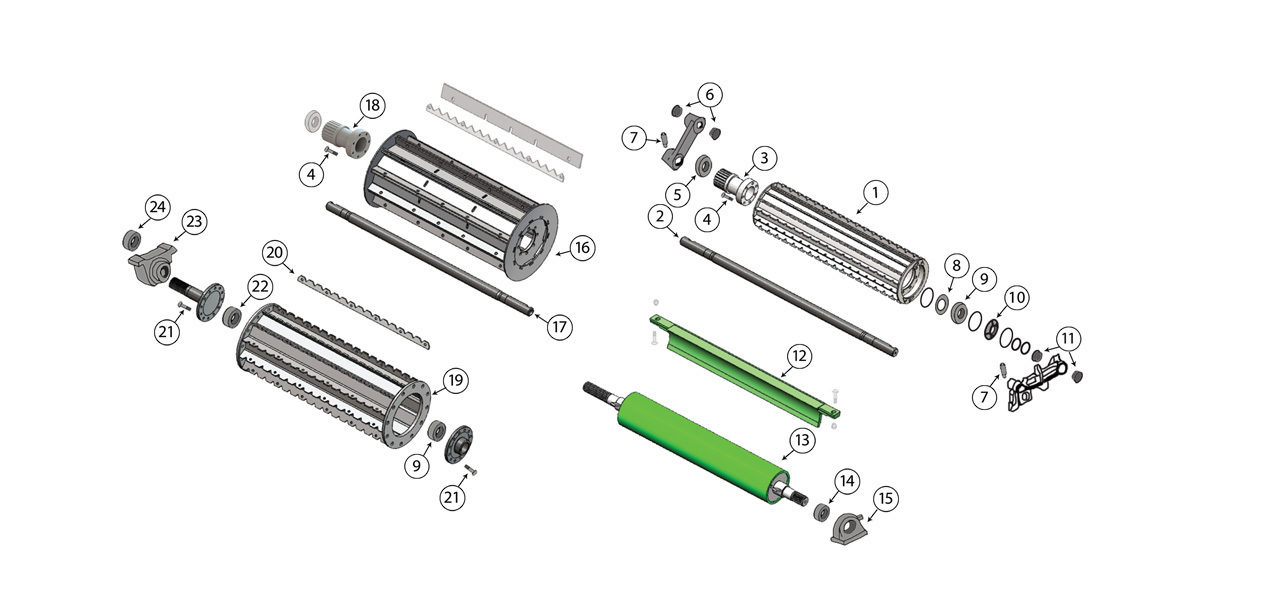

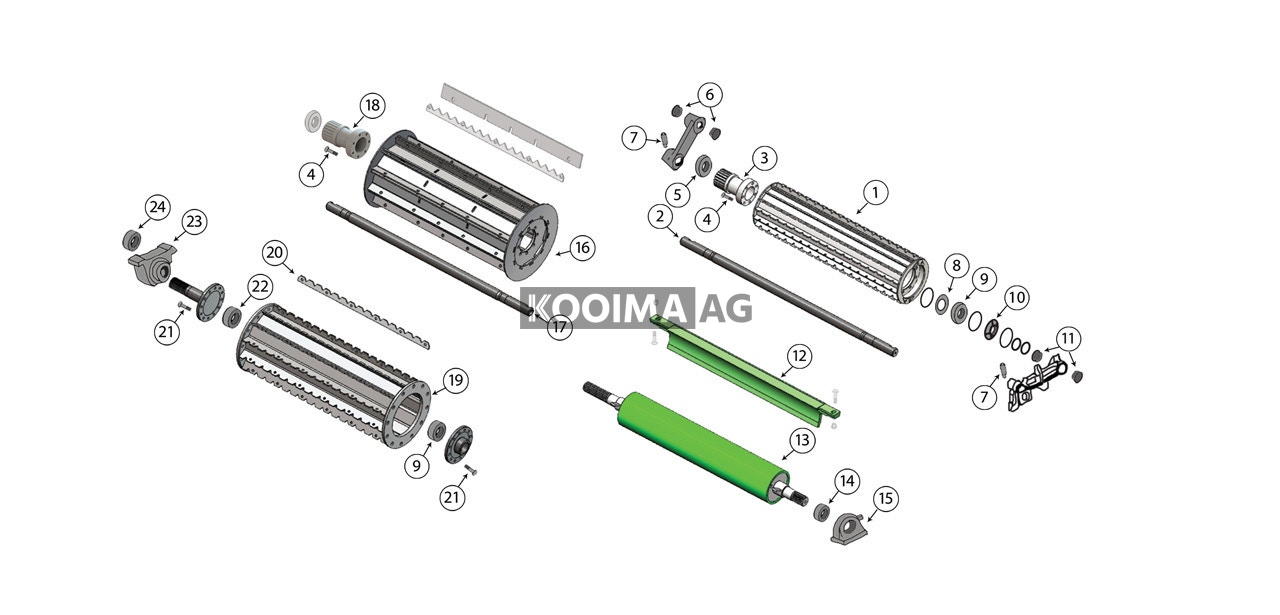

496 Feed Roll Assembly

Compatible Models:

496

496 Feed Roll Assembly
Sch.ID
Kooima Ag #
Type
Replaces OEM #
Price
1
Kooima Ag #:K9863261

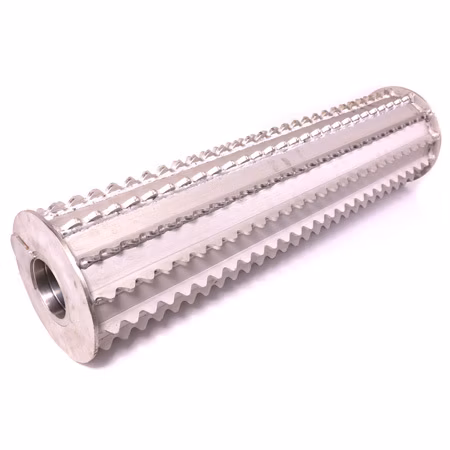

Aggressive Upper Rear Feed Roll
Replaces OEM #:9863261, 9863260
$2,550.00
2
Kooima Ag #:K9844214
Upper Rear Feed Roll Shaft (491, 492, 495 & 496 series)
Replaces OEM #:9844214, 9844213
$395.00
3
Kooima Ag #:K9844490
Upper Rear Drive Hub
Replaces OEM #:9844490
$311.25
3a
Kooima Ag #:K4951760
Upper Rear Drive Hub
Replaces OEM #:4951760, 4951770
$292.50
4
Kooima Ag #:K2339661
Drive Hub Bolt (M10)
Replaces OEM #:2339661
$0.90
5
Kooima Ag #:K2114500
Drive Hub Seal
Replaces OEM #:2114500
$11.25
6
Kooima Ag #:K0085430
Lift Arm Bushing
Replaces OEM #:85430
$4.25
7
Kooima Ag #:K9071323
Lift Arm Key
Replaces OEM #:9071323, 9071322
$28.15
8
Kooima Ag #:K1782720
Nylon Bearing Cover
Replaces OEM #:1782720
$4.45
9
Kooima Ag #:K2122260
Upper Rear & Lower Front Bearing
Replaces OEM #:2122260
$18.00
10
Kooima Ag #:K9844360
LH Roller Ring
Replaces OEM #:9844360
$35.00
11
Kooima Ag #:K0085600
LH Lift Arm Bushing
Replaces OEM #:85600
$5.50
12
Kooima Ag #:K9843393
Smooth Roll Cleaner
Replaces OEM #:9843395, 9843394, 9843393
$322.55
12a
Kooima Ag #:K9843393HP
Koyma Klad® Hi-Performance Smooth Roll Cleaner
Replaces OEM #:9843395, 9843393, 9843394
$585.00
13
Kooima Ag #:K9844930
Lower Rear Smooth Roll
Replaces OEM #:9844931, 9844930
$625.00
14
Kooima Ag #:K2127180
Smooth Roll Bearing
Replaces OEM #:2127180
$34.25
15
Kooima Ag #:K9844900
Bearing Housing (Housing Only)
Replaces OEM #:9844900
$105.00
16
Kooima Ag #:K9856280

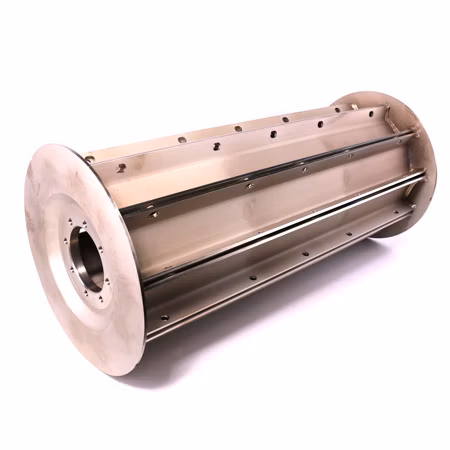

Upper Front Feed Roll w/o Teeth
Replaces OEM #:9856282
$2,049.60
17
Kooima Ag #:K9864130
Upper Front Feed Roll Shaft (491, 492, & 500 series)
Replaces OEM #:9864130
$447.00
18
Kooima Ag #:K9857661
Upper Front Drive Hub
Replaces OEM #:9857661, 9864801, 9864802, 9857660
$605.00
19
Kooima Ag #:K9843466
Lower Front Feed Roll
Replaces OEM #:26008140 / 9843466
$2,708.00
20
Kooima Ag #:K13125901
Lower Front Feed Roll Tooth (491, 492, 493, 494, 495, & 496)
Replaces OEM #:13125901, 9862671, 13125900
$45.00
20a
Kooima Ag #:K9862671BK
Feed Roll Tooth Bolt Kit
Replaces OEM #:-
$86.00
20b
Kooima Ag #:K13248740
Lower Front Feed Roll Tooth
Replaces OEM #:26011511, 26011510
$77.50
20c
Kooima Ag #:K13248740BK
Bolt Kit for Lower Front Feed Roll Tooth (497, 498)
Replaces OEM #:-
$105.00
21
Kooima Ag #:K2121181
Drive Hub Bolt
Replaces OEM #:2121183, 2121181, 2121182, 2121180
$3.76
22
Kooima Ag #:K2377130
Lower Front Feed Roll Bearing
Replaces OEM #:2377130, 23416047
$6.40
23
Kooima Ag #:K2135750
RH Feed Roll Housing and Bearing
Replaces OEM #:2135750
$115.00
24
Kooima Ag #:K10032036
RH Bearing
Replaces OEM #:2164280
$52.00
