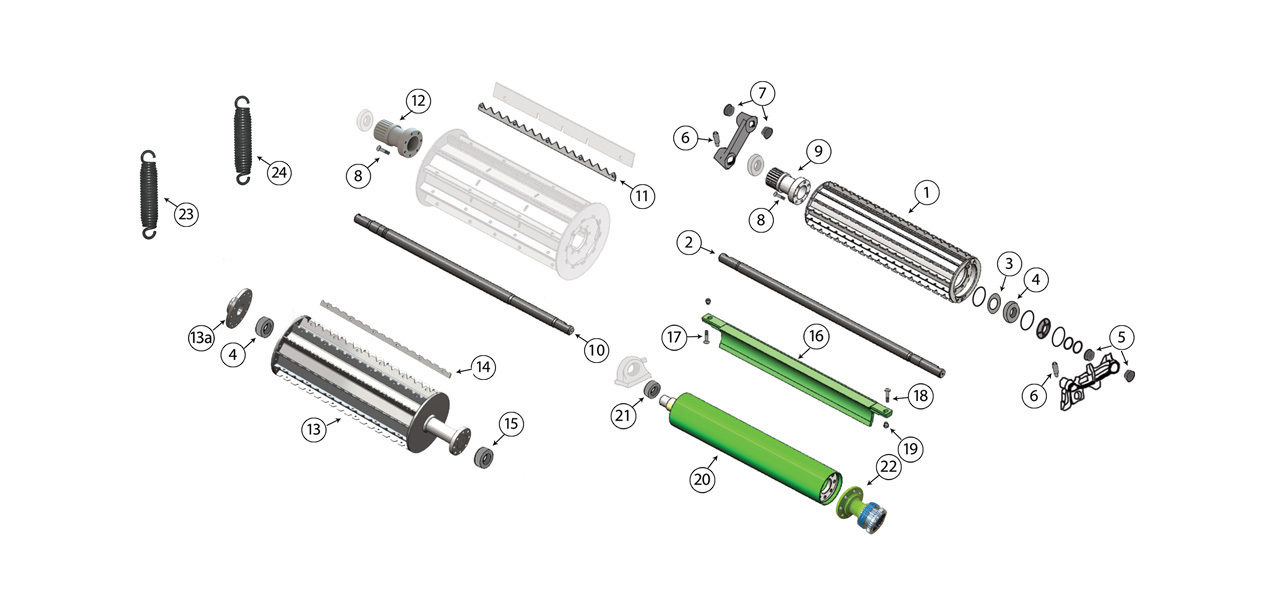

497 Feed Roll Assembly
![497 Feed Roll Assembly](https://d39bcfau7mgdis.cloudfront.net/imagertransforms/generaluploads/Schematics/896439/497-Feed-Roll-Assembly_42fee1f6ba9d7bae605ef304bb9a5606.jpg)
Parts
Sch. ID | Product Image | Kooima Ag # | Title | Replaces OEM # | Price | Quantity |
---|---|---|---|---|---|---|
1 |
![]() |
K13248910 | Upper Rear Feed Roll | 13248910 | $2,150.00 | |
2 |
![]() |
K4951732 | Upper Rear Feed Roll Shaft (493, 494, 497, and 498 series) | 4951732, 4951730, 4951731 | $395.00 | |
3 |
![]() |
K1782720 | Nylon Bearing Cover | 1782720 | $4.45 | |
4 |
![]() |
K2122260 | Upper Rear & Lower Front Bearing | 2122260 | $18.00 | |
5 |
![]() |
K0085600 | LH Lift Arm Bushing | 85600 | $5.50 | |
6 |
![]() |
K9071323 | Lift Arm Key | 9071323, 9071322 | $28.15 | |
7 |
![]() |
K0085430 | Lift Arm Bushing | 85430 | $4.25 | |
8 |
![]() |
K2154180 | Drive Hub Bolt M12x30 | 2154180 | $2.55 | |
9 |
![]() |
K4951760 | Upper Rear Drive Hub | 4951760, 4951770 | $292.50 | |
10 |
![]() |
K4952642 | Upper Front Feed Roll Shaft (493, 494, 497, & 498 series) | 4952642, 4952641 | $375.00 |
Showing 1 - 10 of 30
