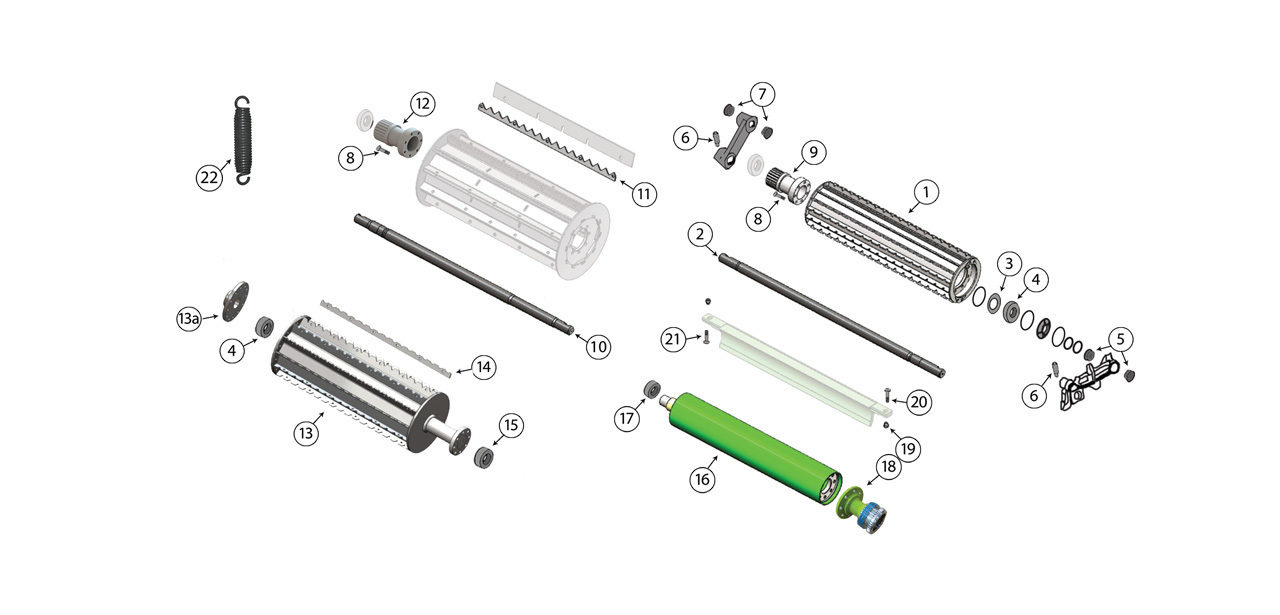

498 Feed Roll Assembly
Parts
| Sch. ID | Product Image | Kooima Ag # | Title | Replaces OEM # | Price | Quantity |
|---|---|---|---|---|---|---|
| 1 |
|
K13248910 | Upper Rear Feed Roll | 13248910 | $2,150.00 | |
| 2 |
|
K4951732 | Upper Rear Feed Roll Shaft (493, 494, 497, and 498 series) | 4951732, 4951730, 4951731 | $395.00 | |
| 3 |
|
K1782720 | Nylon Bearing Cover | 1782720 | $4.45 | |
| 4 |
|
K2122260 | Upper Rear & Lower Front Bearing | 2122260 | $18.00 | |
| 5 |
|
K0085600 | LH Lift Arm Bushing | 85600 | $5.50 | |
| 6 |
|
K9071323 | Lift Arm Key | 9071323, 9071322 | $28.15 | |
| 7 |
|
K0085430 | Lift Arm Bushing | 85430 | $4.25 | |
| 8 |
|
K2154180 | Drive Hub Bolt M12x30 | 2154180 | $2.55 | |
| 9 |
|
K4951760 | Upper Rear Drive Hub | 4951760, 4951770 | $292.50 | |
| 10 |
|
K4952642 | Upper Front Feed Roll Shaft (493, 494, 497, & 498 series) | 4952642, 4952641 | $375.00 |
Showing 1 - 10 of 27
