SC3001 Narrow Kernel Processor Roll Assembly

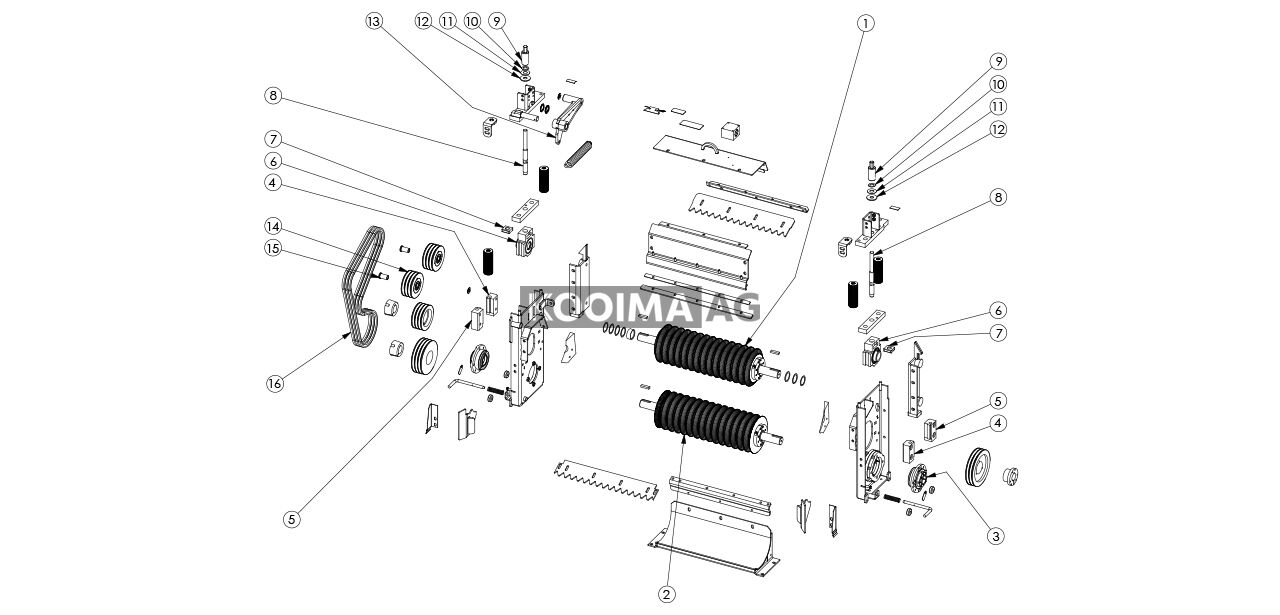

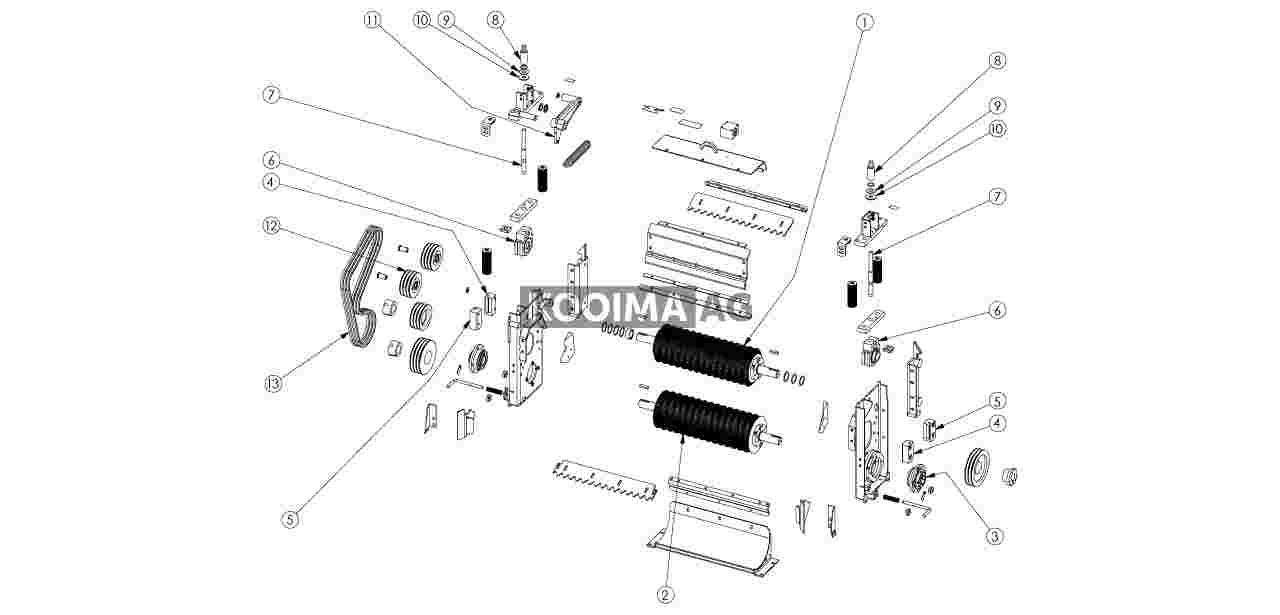

![SC3001 Parts Diagram](https://d39bcfau7mgdis.cloudfront.net/imagertransforms/generaluploads/Schematics/2845689/SC3001-Parts-Diagram_42fee1f6ba9d7bae605ef304bb9a5606.jpg)
Parts
Sch. ID | Product Image | Kooima Ag # | Title | Replaces OEM # | Price | Quantity |
---|---|---|---|---|---|---|
0 |
![]() |
SC3001USED | Koyma Klad® Silage Plus Processor (6000 series) USED | $13,500.00 | ||
1 | SC2000068 | Upper Roll Assembly, 6000 Series Processor | $7,550.00 | |||
2 | SC2000067 | Lower Roll Assembly, 6000 Series | $7,550.00 | |||
3 |
![]() |

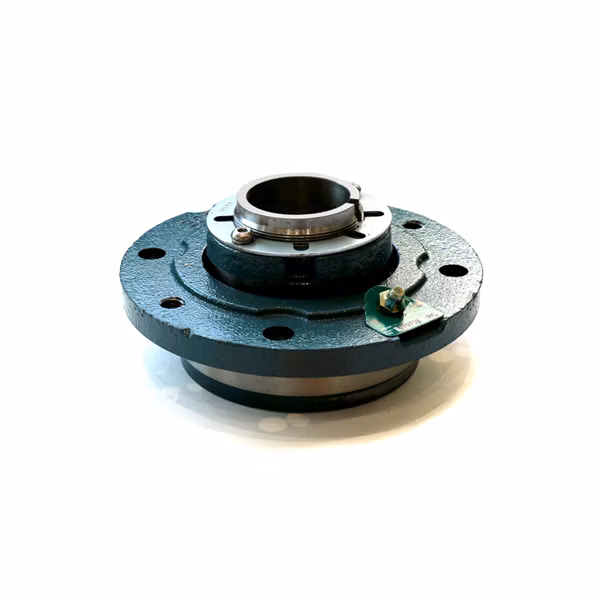

SC1000133 | Bearing, Piloted Flange | $865.00 | ||
4 | SC1000025 | Guide Block, RH | $126.00 | |||
5 | SC1000027 | Guide Block, LH | $126.00 | |||
6 |
![]() |
K100856 | Bearing with Housing for UPPER KP rolls (before SN 508668) | AZ100856 | $322.50 | |
7 |
![]() |
SC1000040 | Adjusting Bolt | $45.75 | ||
8 |
![]() |
SC2000008 | Roll Gap Adjustment Nut | $43.00 | ||
9 |
![]() |
SC1000232 | Fiber Clad Washer | $7.55 |
Showing 1 - 10 of 14
