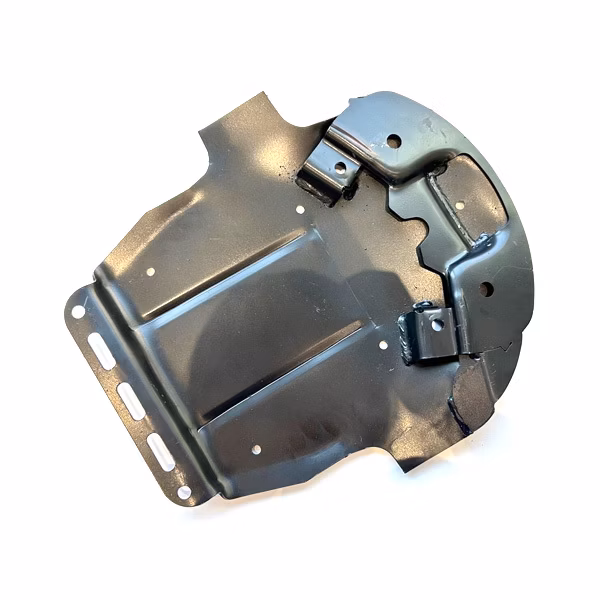

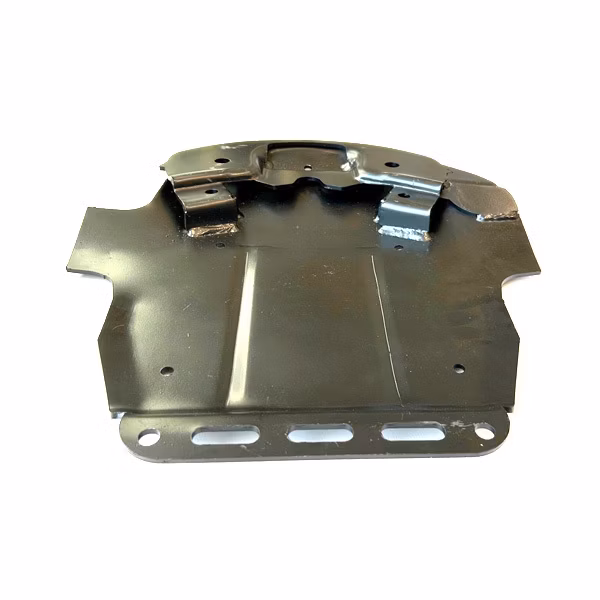

Rock Guard (RH)

The "Max-Cut" bar. The top hat outside turtle gets mounted above this outside rock guard.

This rock guard helps protect the bottom of the cutter bar by blocking rocks from entering the machine. Because of their location, close to the ground, they tend to wear out just outside the skid plates.

To install the rock guard, slide the front into place and tighten the bolts on the back of the rock guard. Replace the rock guard when it starts to have pieces missing outside the side plates.
