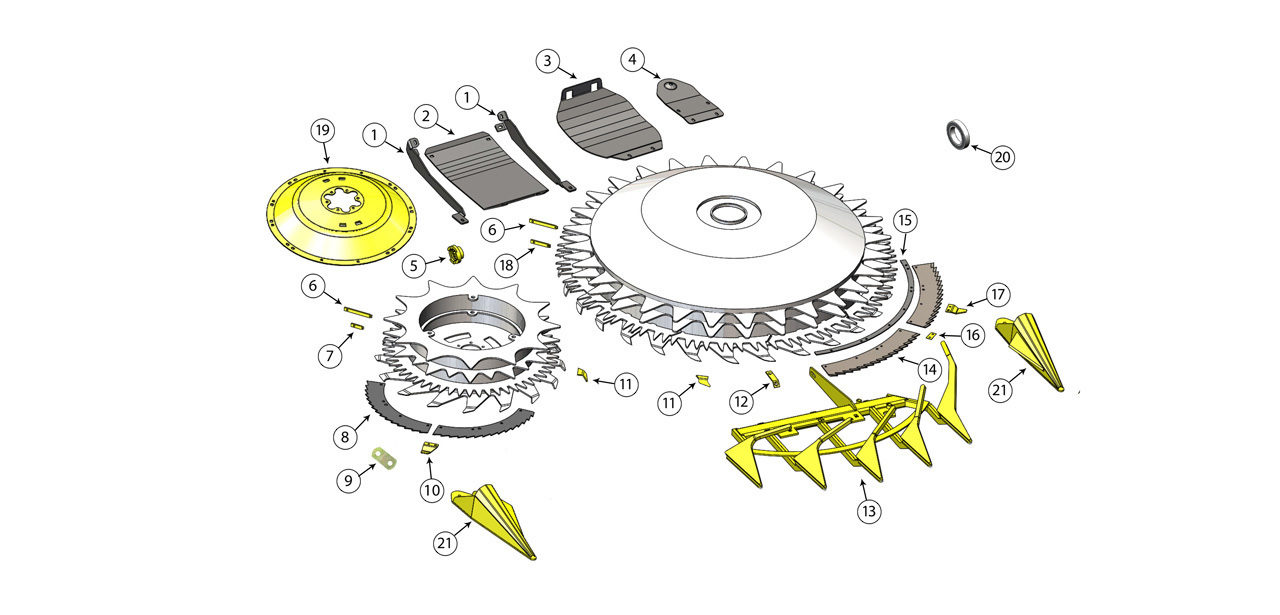

770+ Rotary Head Assembly

Compatible Models:

770+

770plus Rotary Head Assembly
Sch.ID
Kooima Ag #
Type
Replaces OEM #
Price
0
Kooima Ag #:KK770TC
Kemper™ 475 10-Row, John Deere® 770 10-Row Kit
Replaces OEM #:LCA66037, LCA66038, LCA67746, LCA95957
$2,124.75
1
Kooima Ag #:KK93681
Skid Plate Support LH
Replaces OEM #:LCA93681
$37.00
1
Kooima Ag #:KK93682
Skid Plate Support RH
Replaces OEM #:LCA93682
$37.00
2
Kooima Ag #:KK90661
Large Drum Skid Plate
Replaces OEM #:LCA90661
$184.00
3
Kooima Ag #:KK100120
Drum Skid Plate
Replaces OEM #:LCA100120
$107.00
4
Kooima Ag #:KK94905
Fender
Replaces OEM #:LCA94905
$49.00
4a
Kooima Ag #:KK94905BK
Bolt kit for K94905
Replaces OEM #:-
$4.30
5
Kooima Ag #:KK69654
Wing Drive Coupler
Replaces OEM #:LCA69654
$82.00
6
Kooima Ag #:KK92910
Rotating Scraper
Replaces OEM #:LCA92910
$9.00
6a
Kooima Ag #:KK92910BK
Rotating Scraper Bolt Kit (KK92910, KK93241, KK109129 & KK97955)
Replaces OEM #:-
$0.85
7
Kooima Ag #:KK93241
Rotating Scraper
Replaces OEM #:LCA93241
$8.00
8
Kooima Ag #:KK67746
Cutting Blade
Replaces OEM #:LCA64476, LCA95957
$39.00
8a
Kooima Ag #:KK67746LTC
Hard-Surfaced Blade LH
Replaces OEM #:LCA95958, LCA67746
$49.50
8a
Kooima Ag #:KK67746RTC
Hard-Surfaced Blade RH
Replaces OEM #:LCA95959, LCA67746
$49.50
8b
Kooima Ag #:KK130175
Serrated Aggressive Blade LH
Replaces OEM #:LCA130175, LCA67746
$69.00
8b
Kooima Ag #:KK130176
Serrated Aggressive Blade RH
Replaces OEM #:LCA130176
$69.00
8c
Kooima Ag #:KK770BK
Hardware Kit
Replaces OEM #:-
$144.75
9
Kooima Ag #:KK76374
Support Strap
Replaces OEM #:LCA76374
$4.30
10
Kooima Ag #:KK69805
Blade Scraper RH
Replaces OEM #:LCA69805
$14.00
10
Kooima Ag #:KK69806
Blade Scraper LH
Replaces OEM #:LCA69806
$14.00
10a
Kooima Ag #:KK69805BK
Bolt Kit
Replaces OEM #:-
$4.35
11
Kooima Ag #:KK90654
Intake disc weld-on section- clockwise rotation (Right)
Replaces OEM #:LCA90654
$5.60
11
Kooima Ag #:KK90655
Intake disc weld-on section- counterclockwise rotation (Left)
Replaces OEM #:LCA90655
$5.60
12
Kooima Ag #:KK95370
Rotating Scraper
Replaces OEM #:LCA95370
$13.00
13
Kooima Ag #:KK97977
Inner Large Drum Crop Divider Assembly (LH)
Replaces OEM #:LCA97977
$940.00
13
Kooima Ag #:KK97978
Inner Large Drum Crop Divider Assembly (RH)
Replaces OEM #:LCA97978
$940.00
14
Kooima Ag #:KK66037
Cutting Blade, Large Drum
Replaces OEM #:LCA66037
$37.00
14a
Kooima Ag #:KK66037LTC
Hard-Surfaced Blade LH, large drum
Replaces OEM #:LCA78237, LCA66037
$49.50
14a
Kooima Ag #:KK66037RTC
Hard-Surfaced Blade RH, large drum
Replaces OEM #:LCA78238, LCA66037
$49.50
14b
Kooima Ag #:KK129957
Serrated Aggressive Blade LH, large drum
Replaces OEM #:LCA129957, LCA66037
$69.00
14b
Kooima Ag #:KK129956
Serrated Aggressive Blade RH, large drum
Replaces OEM #:LCA78236, LCA66037
$69.00
15
Kooima Ag #:KK89871SS
Drum Rotor Support Strap
Replaces OEM #:-
$29.25
16
Kooima Ag #:KK88009
Support Strap
Replaces OEM #:LCA88009
$4.75
17
Kooima Ag #:KK67156
Blade Scraper LH
Replaces OEM #:LCA67156
$15.25
17
Kooima Ag #:KK67157
Blade Scraper RH
Replaces OEM #:LCA67157
$15.25
17a
Kooima Ag #:KK67156BK
Bolt Kit
Replaces OEM #:-
$5.75
18
Kooima Ag #:KK97955
Rotating Scraper
Replaces OEM #:LCA97955, LCA92911
$6.50
19
Kooima Ag #:KK109069
Drum Rotor (Star center hole)
Replaces OEM #:LCA109069
$325.00
20
Kooima Ag #:KK64557
Bearing for Wing Drive Coupler / Main Drive Clutch
Replaces OEM #:JD9241, LCA64557
$44.00
21
Kooima Ag #:KK103004
Outside Snoot (Right)
Replaces OEM #:LCA107995, LCA103004, LCA102932
$155.00
21
Kooima Ag #:KK103005
Outside Snoot (Left)
Replaces OEM #:LCA107996, LCA103005, LCA102931
$155.00
22
Kooima Ag #:KK123119
Rear Drum Scraper (LH)
Replaces OEM #:LCA123119
$1,351.00
22
Kooima Ag #:KK123120
Rear Drum Scraper (RH)
Replaces OEM #:LCA123120
$1,351.00
23
Kooima Ag #:KK115655
Gathering Point
Replaces OEM #:LCA115655
$450.00
23
Kooima Ag #:KK115656
Gathering Point
Replaces OEM #:LCA115656
$450.00
